Shaunebu MAUI Navigation

A commercial-grade, type-safe navigation platform for .NET MAUI.
Built around structured results, guard pipelines, named flows, overlay management, compile-time code generation, and a fully integrated Visual Studio debugger extension.

NuGetDownloadsPlatformStatusVisual Studio

Source GeneratorsRoslynLive DebuggerDiagnosticsArchitecture

PlatformsLanguageMAUI

NavigationDebuggerGeneratorsAnalyzersCodeFixes

VSIXLive Monitoring

NuGetMarketplaceDocumentationSupport

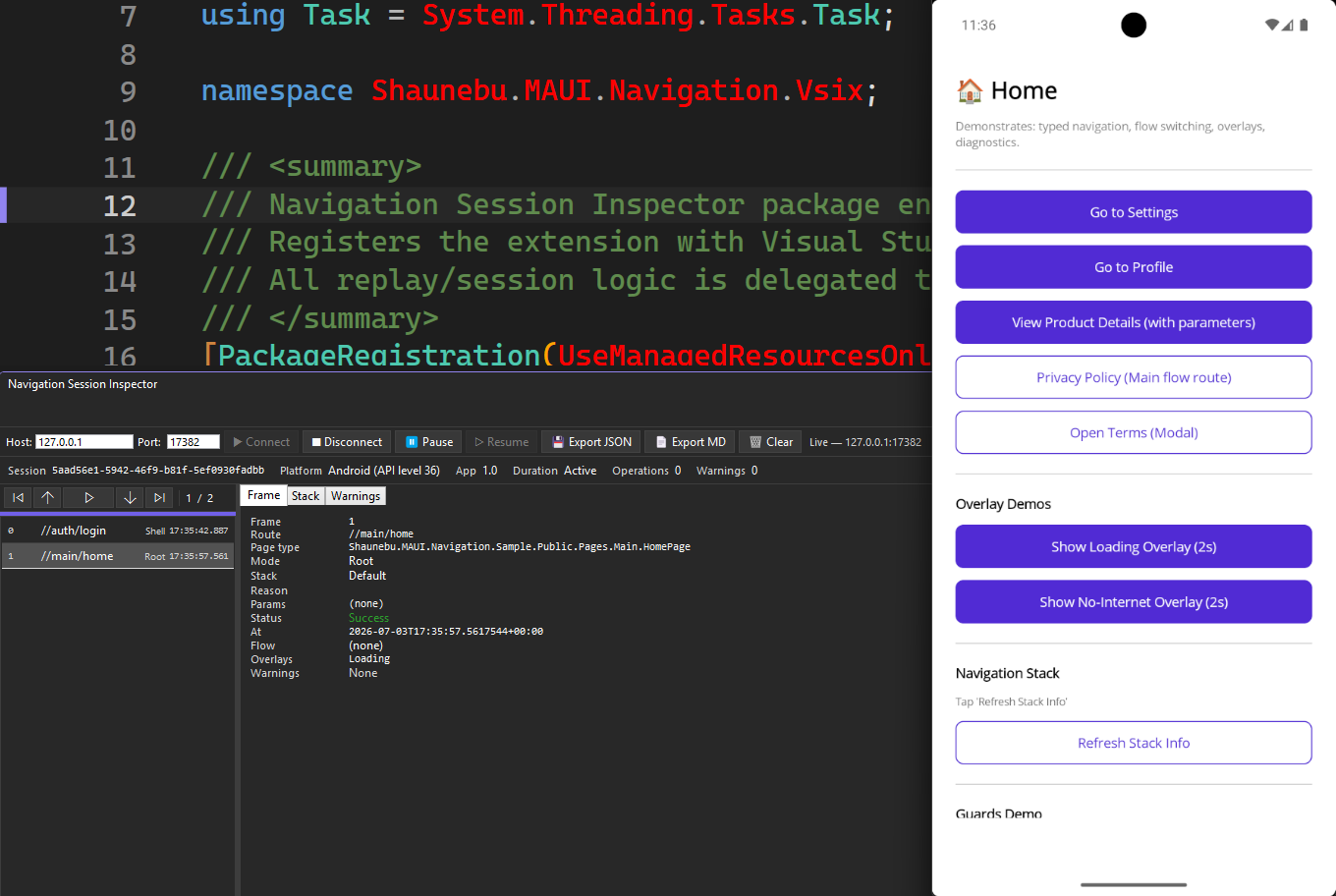

https://jpdblog.blob.core.windows.net/apps/Libraries/VsixDebugNavigation.png

Table of Contents

Overview

Shaunebu.MAUI.Navigation replaces the fragmented MAUI/Shell navigation surface — Shell.Current.GoToAsync, NavigationPage.PushAsync, Application.Current.MainPage.Navigation — with a single, testable, observable abstraction: INavigationHandler.

Every navigation call passes through a deterministic 10-step pipeline:

  1. Create NavigationOperation
  2. Validate the target page or route
  3. Check duplicate-navigation threshold
  4. Acquire the navigation lock
  5. Run all registered INavigationGuard implementations
  6. Resolve the route via INavigationRouteRegistry
  7. Resolve the page via IPageResolver
  8. Execute the appropriate adapter (Shell or NavigationPage)
  9. Invoke INavigationAware lifecycle callbacks on the ViewModel
  10. Emit INavigationDiagnostics events and return NavigationResult

All failures are returned as structured NavigationResult values — never silent exceptions in production.

Key Features

Feature Description
Typed Navigation GoToAsync<TPage>(), SetRootAsync<TPage>(), ShowModalAsync<TPage>()
Structured Results NavigationResult with FailureReason, Message, Exception
Guard Pipeline INavigationGuard — allow, reject, or redirect per navigation
Named Flows INavigationFlow + INavigationFlowManager — Auth/Main/Onboarding contexts
Overlay System IOverlayNavigationService — loading and no-internet overlays
Source Generators [NavigationRoute] attribute emits route constants + typed extension methods
Roslyn Analyzers 10 diagnostic rules (SHAUNAV001–SHAUNAV010) enforcing navigation best practices
Roslyn Code Fixes Automated fixes for select analyzer violations
Navigation Debugger Session recording, timeline replay, stack diffing, runtime warnings, export/import
VSIX Extension Visual Studio tool window for live inspection and session file analysis
Back-Navigation Control IBackAware ViewModel interceptor + hardware back-button handling
ViewModel Lifecycle INavigationAware — OnNavigatedToAsync, OnNavigatingFromAsync, OnNavigatedFromAsync
Stack Inspector INavigationStackInspector — point-in-time stack snapshots for diagnostics and tests

Architecture Overview

┌─────────────────────────────────────────────────────────────────────┐
│                         Your Application                            │
│  ViewModels inject INavigationHandler / INavigationFlowManager      │
└────────────────────────────┬────────────────────────────────────────┘
							 │
┌────────────────────────────▼────────────────────────────────────────┐
│                    Navigation Pipeline                              │
│  Duplicate check → Lock → Guards → Route resolution → Adapter      │
│  → INavigationAware callbacks → INavigationDiagnostics → Result     │
└────────┬──────────────┬──────────────┬───────────────┬─────────────┘
		 │              │              │               │
   Shell Adapter  NavigationPage  Overlay System   Flow Manager
		 │              │              │               │
┌────────▼──────────────▼──────────────▼───────────────▼─────────────┐
│                  MAUI Platform Layer                                │
│       Shell.Current / NavigationPage / Application.Current         │
└─────────────────────────────────────────────────────────────────────┘
		 │
┌────────▼─────────────────────────────────────────────────────────────┐
│                  Diagnostics + Debugger (DEBUG only)                 │
│   NavigationDiagnosticsBus → SessionRecorder → WarningEngine        │
│   → StackDiffEngine → Exporter → VSIX Tool Window                  │
└─────────────────────────────────────────────────────────────────────┘

NuGet Packages

Package Target Purpose
Shaunebu.MAUI.Navigation net9.0 / net10.0 Core navigation library
Shaunebu.MAUI.Navigation.Debugger net9.0 / net10.0 Runtime diagnostics platform
Shaunebu.MAUI.Navigation.Analyzers netstandard2.0 Roslyn analyzers (SHAUNAV001–010)
Shaunebu.MAUI.Navigation.CodeFixes netstandard2.0 Roslyn code fixes
Shaunebu.MAUI.Navigation.Generators netstandard2.0 Incremental source generators

Install the core package and generators in your MAUI app project. Add Analyzers + CodeFixes for compile-time enforcement. Add Debugger only in DEBUG configurations.

VSIX Extension

The Navigation Inspector Visual Studio extension provides:

  • Live stack viewer — real-time navigation and modal stack while debugging
  • Timeline panel — chronological view of all navigation operations in a session
  • Warning viewer — runtime warnings surfaced from NavigationRuntimeWarningEngine
  • Frame inspector — per-operation detail (route, parameters, timing, stack diff)
  • Session loader — open exported .json session files for post-mortem analysis

Install from the Visual Studio Marketplace or the vsix/ build output.

Quick Start

1. Register Navigation

// MauiProgram.cs
builder.UseShaunebuNavigation(options =>
{
	options.DefaultNavigationMode      = NavigationPresentationMode.Shell;
	options.PreventDoubleNavigation    = true;
	options.DoubleNavigationThreshold  = TimeSpan.FromMilliseconds(750);
	options.EnableDiagnostics          = true;
	options.EnableNavigationGuards     = true;
	options.EnableOverlaySystem        = true;
	options.ThrowOnNavigationFailure   = false;

	// Route registration via source generator
	GeneratedNavigationRegistration.RegisterGeneratedRoutes(options);
});

2. Annotate Pages

[NavigationRoute("main/home", Flow = "Main")]
public partial class HomePage : ContentPage { }

[NavigationRoute("auth/login", Flow = "Auth")]
public partial class LoginPage : ContentPage { }

public sealed class LoginViewModel
{
	private readonly INavigationHandler _navigation;
	private readonly INavigationFlowManager _flowManager;

	public LoginViewModel(INavigationHandler navigation, INavigationFlowManager flowManager)
	{
		_navigation  = navigation;
		_flowManager = flowManager;
	}

	public async Task LoginAsync()
	{
		// Perform login …

		var result = await _flowManager.ResetToFlowAsync<MainFlow>();
		if (!result.Succeeded)
			await ShowErrorAsync(result.Message);
	}
}

4. Handle Results

var result = await _navigation.GoToAsync<SettingsPage>();

if (!result.Succeeded)
{
	switch (result.FailureReason)
	{
		case NavigationFailureReason.GuardRejected:
			await ShowAlertAsync("Access denied.");
			break;
		case NavigationFailureReason.DuplicateNavigationPrevented:
			break; // user tapped twice — safe to ignore
		default:
			_logger.LogWarning("Navigation failed: {Reason}", result.FailureReason);
			break;
	}
}

Documentation Sections

Section Description
Getting Started First-time setup walkthrough
Installation NuGet and VSIX installation
Typed Navigation INavigationHandler API reference
Navigation Routes Route registry and [NavigationRoute] attribute
Navigation Options NavigationOptions and ShaunebuNavigationOptions
Navigation Results NavigationResult and NavigationFailureReason
Navigation Exceptions ThrowOnNavigationFailure and exception handling
Guards Overview Navigation guard pipeline
Authentication Guard AuthenticationGuard<TLoginPage>
Maintenance Guard MaintenanceGuard<TMaintenancePage>
Internet Required Guard InternetRequiredGuard<TOfflinePage>
Unsaved Changes Guard UnsavedChangesGuard
Custom Guards Implementing INavigationGuard
Flows Overview Named navigation flows
Creating Flows Implementing INavigationFlow
Flow Manager INavigationFlowManager API
Flow Context NavigationFlowContext
Overlays Overview Overlay system concepts
Loading Overlay ShowLoadingAsync / HideLoadingAsync
No-Internet Overlay ShowNoInternetAsync / HideNoInternetAsync
Custom Overlays Extending the overlay system
Diagnostics Overview INavigationDiagnostics
Debugger Overview Navigation debugger platform
Generators Overview Source generator system
Analyzers Overview Roslyn analyzer rules
VSIX Overview Visual Studio extension
Sample Application End-to-end walkthrough
Advanced Topics DI, extensibility, testing
API Reference Full public API index

API Reference

See reference/api-reference.md for the complete index of all public interfaces, classes, records, enums, and extension methods.
